Brusso Brass Offset Pivot Hinge L-97

Product Description

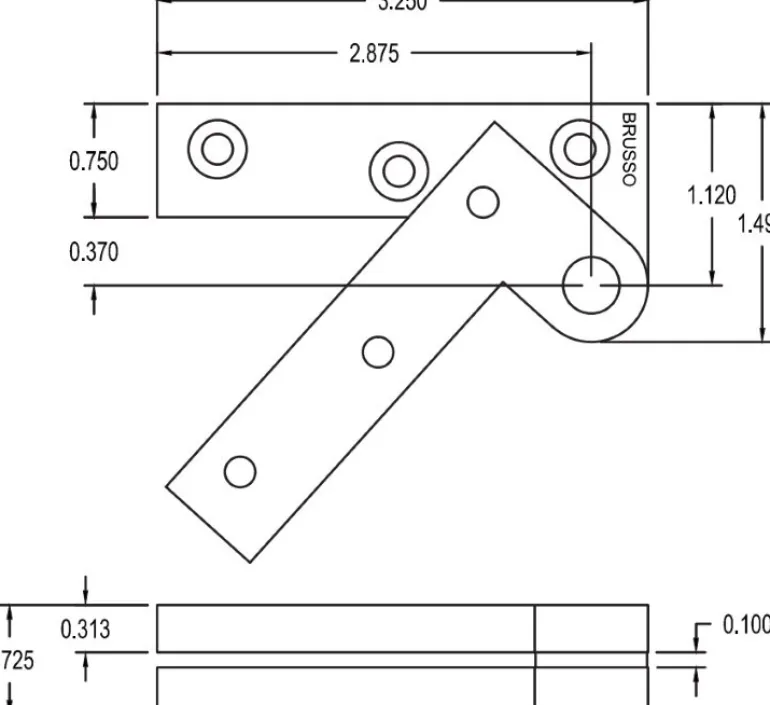

The Brusso L-97 offset pivot hinge is employed when a minimum of visible hardware is desired or when the door must swing free of its frame. It is morticed into the top and bottom of the door and frame; only the pivot is visible. The leaf measures 3¼” x 3/4″ x 5/16″.

Length: 3.250″ – 3¼” – 83mm
Width: 0.750″ – 3/4″ – 19mm
Leaf Thickness: 0.313″ – 5/16″ – 8mm

NOTE – All Brusso hinges come in PAIRS (so one pack will allow you to do top and bottom of one door). Screws are INCLUDED (brass for the brass hinges and stainless for the stainless steel hinges). A single stainless steel screw is also included with brass hinges. This is used to make a pilot hole for the brass screws to help prevent any damage to the brass screws.
