Gifkins A10 Dovetail Jig

Product Description

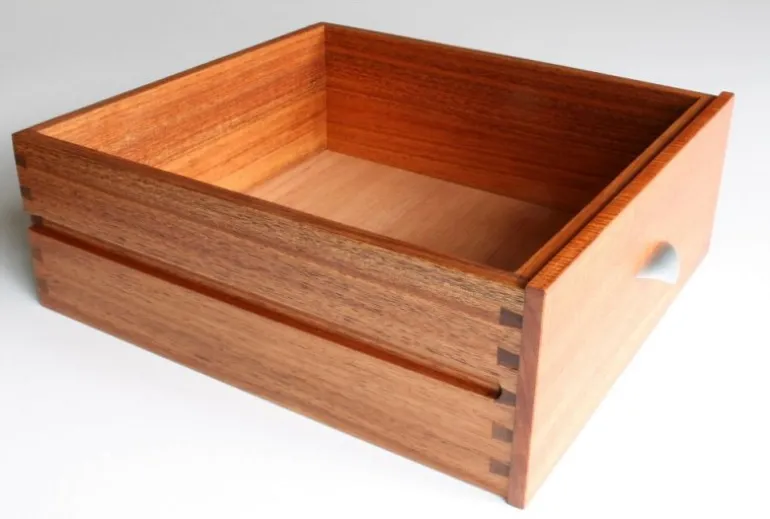

The A10 Gifkins Box Maker’s Dovetail Jig. This dovetail template cuts a medium-sized dovetail joint. It’s our most popular template because it offers you—the box maker—a versatile timber thickness range: 5mm to 13mm. The A10 cutters have 1/4-inch cutters. Use thinner timber for delicate boxes and fine insert trays. Use thicker timbers for large jewellery boxes, drawers, file trays, pantry and table wear.

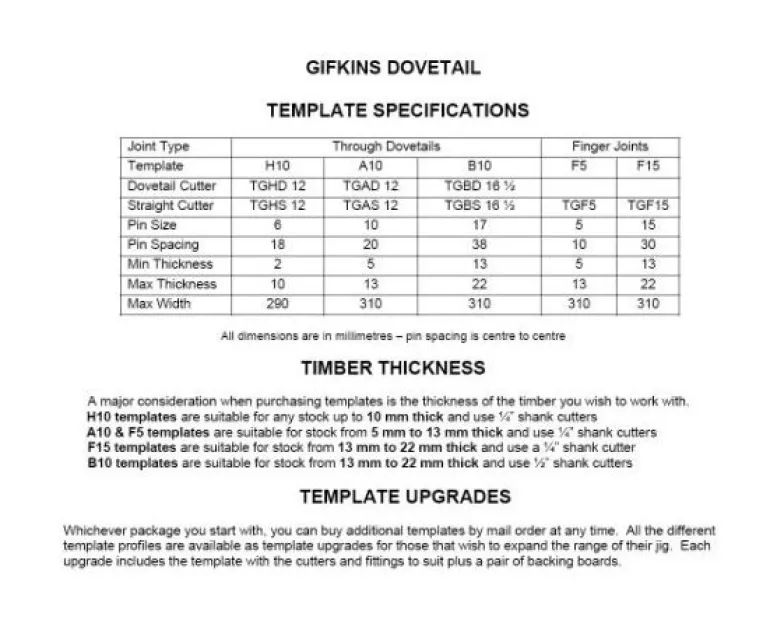

• Pin Size 10mm.
• Pin Spacing 20mm.
• Min material thickness 5mm.
• Max material thickness 13mm.
• Max width 310mm.

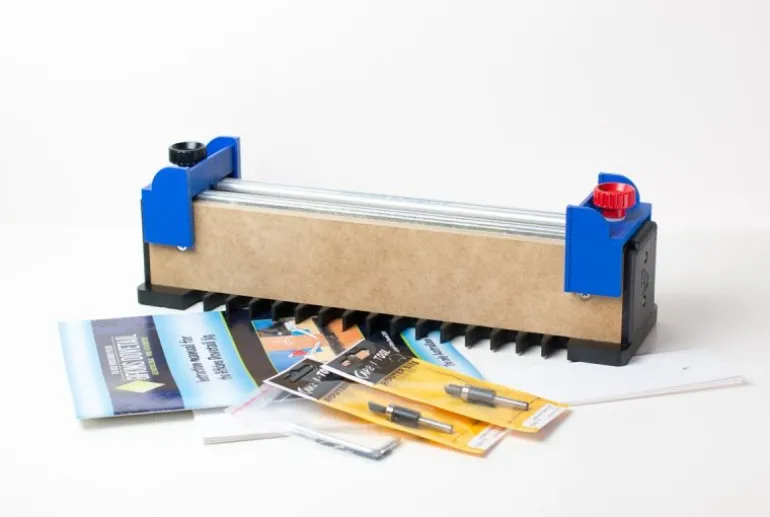

Includes the a Standard A10 template, 6mm (¼”) shank straight and dovetail carbide cutters with top bearings, two adjustable stops and extra shims.
